KSB - Bidirectional Knife Gate Valve

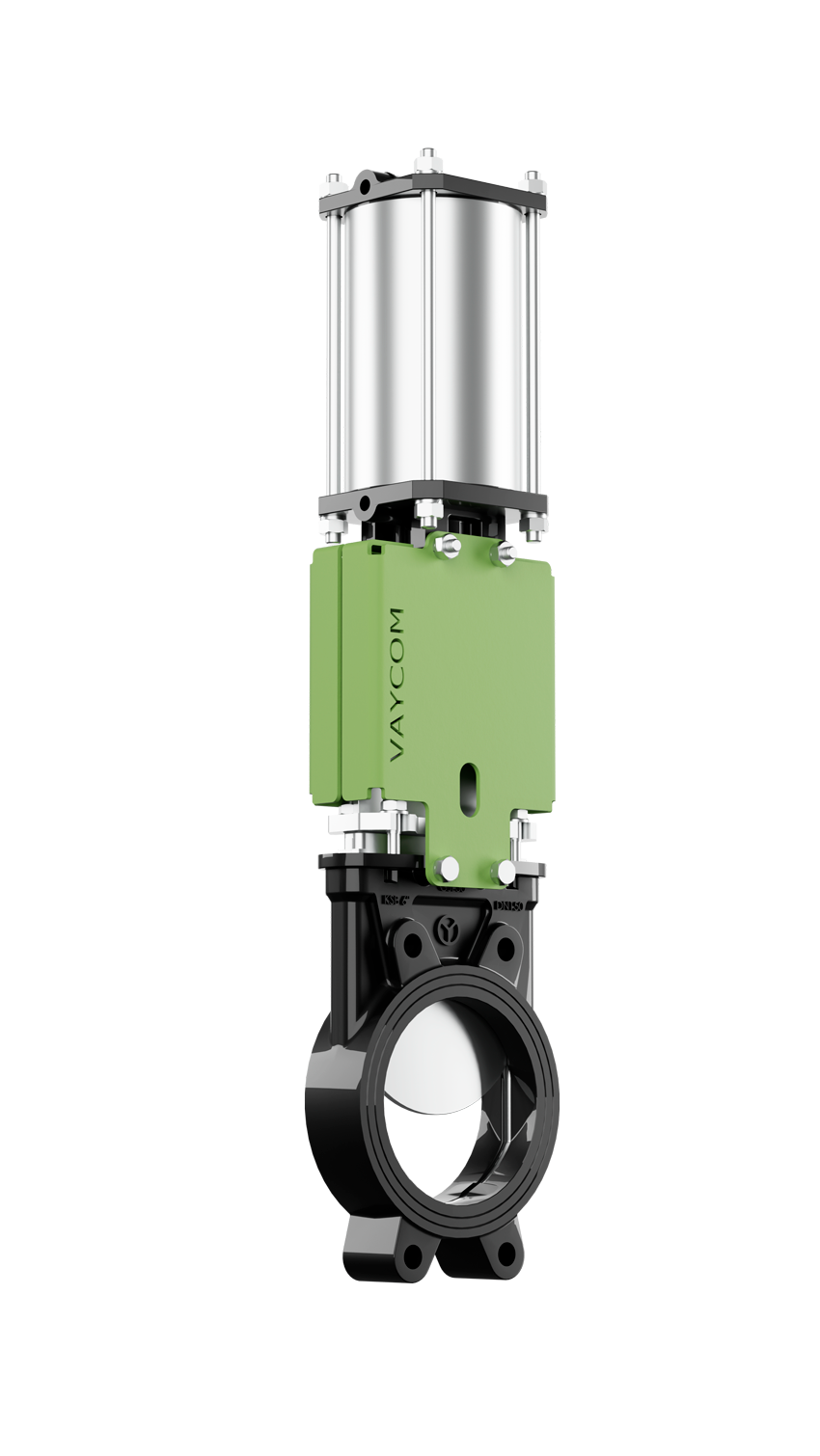

VAYCOMThe KSB knife gate valve is bidirectional and features one-piece cast iron body with a wafer design for installation between flanges. The seat is inserted into the body creating a completely flat sealing surface with no internal cavities and preventing solids from accumulating in the sealing area.
The AISI 304L or AISI 316L stainless steel knife gate is guided, polished on both sides and has rounded edges to reduce wear on the seal and packing during operation.
The design provides high flow rates with low pressure loss. Various body, seal and packing materials are available. The face-to-face dimension follows the VAYCOM standard.
Standard design
EN1092 PN10 / DIN PN10
ASME B16.5 (class 150) / ASNI150
(Others available).
Pressure
- DN50 to DN250: 10bar
- DN300 to DN400: 6bar
- DN450: 5bar
- DN500 to DN600: 4bar
Sizes
DN50/2” to DN600/24”; larger sizes available on request.
Materials
Body: GJL250 / CF8M (other like DUPLEX or SUPERDUPLEX on request).
Gate: AISI304L / AISI316L (other like DUPLEX 2205 or SUPERDUPLEX 2507 on request).
Gasket: SYTN+PTFE, Graphite, O-ring.
Seat
Metal/Metal, EPDM, NBR, Viton, PTFE, Silicone.
Actuators
Handwheel, lever, gear box, chain handwheel, pneumatic, hydraulic and electric actuators.
Sectors
Hydropower plants and dams / Water distribution / Pulp and paper / Thermo-electric installations / Steel sector / Water treatment / Mining / Chemical industry / Food industry.
Applications
Solids / Contaminated fluids / Paper and cellulose / Sludge / etc.
Accessories and options
Deflector cone, reinforced socket, scraper, V-shaped or 5-sided passage, flushing holes, emergency handwheel, limit switches, proximity switches, solenoid valves, filters, emergency systems, junction boxes, extensions stems, etc.
KSB - Bidirectional Knife Gate Valve
VAYCOM product information sheet.
